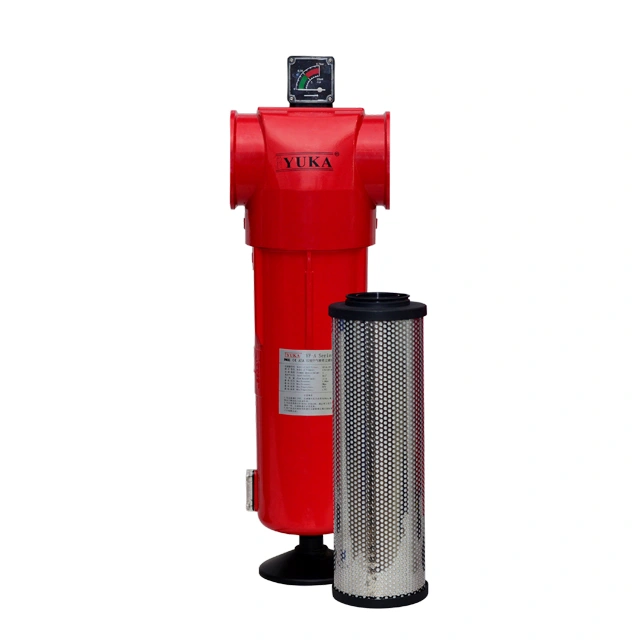

Air Dust Filter Downstream Filter for Air Compressor

Name: Air Dust Filter Downstream Filter for Air Compressor
Brand: Yuka
Price: 1 USD

Air Dust Filter Downstream Filter for Air Compressor Manufactures

Model No. : YF140

Brand : YUKA

Origin : China

Element Serve Life : 4000~6000 Hours

HS Code : 8421399090

Clapboard : Without Clapboard

Filter Number : 1

Medium Material : Fiberglass

Type : Cartridge Filter

Material : Aluminum Alloy

Housing Serve Lige : 15 Years

Filtration Performance : From 5 μm To 0.01μm

Maxi. Operate Pressure : 1.0mpa

Operate Temperature : 1.5~80ºc

Resistance Corrosion : Inside And Outside

Color : Red

Transport Package : Brown Inner Box & Cardboard

Efficiency : F9

Filtration Grade : Medium Filter

Flow Rate : 28.0m³/Min

Connection : Rc4"

Element Top Cap Design : Colorful To Distinguish

Diversion Fin Design On Element Top Cap : Less Pressure Loss

Parts : Dp Indicator, Auto Drain Had20b, Sight Glass

Element Material : Sodium Borosilicate Fiber Glass

Remove : Oil Vapor, Oil Mist, Dust Particles, Water Mist

Specification : Dimension: 220x 184x 793mm

Place of Origin : China

Brand Name : Yuka

Price : Negotiable

Packaging Details : Box Package

Delivery Time : 3-7working days

Payment Terms : L/C,T/T

MOQ : 10 pieces

Supply Ability : 300,000pcs/month

Contact Now

Product Description

Feature & Benefit

① Connection size range from RC1/2" to RC4" , flow rate from 1.0m³/min to 48m³/min.

② 4000~6000 hours serve life for Filter Element,filtration performance up to 99%, base on ISO8573.1-2010 Internation Standard
③ 15 years warranty under working condition from temperature 1.5ºC~80ºC.Maxi. Pressure is 1.0Mpa.
④ Lower pressure loss thanks for top cap of filter element with diversion fins, which will let the air come inside the filter more smooth,

7 Grades Filter Element in Detail

PF	AO	AA	AX	ACS	AR	AAR
As a primary filter, particles whose diameter more than 5μm can be remove,the maxi. residual oil content is negligible	High efficiency general protection, dust particles, water mist & oil mist whose diameter more than 1μm can be removed, the residual content of oil mist does not exceed 0.6mg/m³ (21ºC),1ppm(w).	High effiency oil remove filtration, dust particles, water mist and oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.01mg/m³(21ºC),0.01ppm(w)	Ultra-efficient filtration, dust particles, water mist&oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.001mg/m³(21ºC),0.001ppm(w)	Dust particles whose diameter more than 0.01μm, oil vapor &odor can be removed, the maxi. resident content of oil vapor does not exceed 0.003mg/m³(21ºC),0.003ppm(w)	Dust particles whose diameter more than 1μm can be removed	Dust particles whose diameter more than 0.01μm can be removed

International test and measurement standard ISO12500

>ISO 12500 has made clear a general test and definition method for the Compressed Air Filter manufacturers. The main performance
parameters are the air inlet oil content and particles size distribution of the solid particles.
>ISO12500-1 specifies the test requirements for the filtration performance of oil aerosol in the coalescing filter.
>ISO12500-2 specifies the test requirements of adsorption filters for the removal performance of steam adsorption.
>ISO12500-3 specifies the requirements for removal of particulate matter from solid pullutants.

Product are test with the international advanced testing equipment based on standard ISO12500, Which is equivalent to the standard ISO8573.1-2010 quality standard, and provide filter performance test report.

Filtration Grade	PF	AO	AA	AX	ACS	AR	AAR
Size of solid particles(ISO12500-3)	5μm	1μm	0.01μm	0.01μm	-	1μm	0.01μm
Filtration performance of solid particles(ISO12500-3)	-	99.999+%	99.999+%	99.999+%	99.999+%	99.999+%	99.999+%
Filtration performance of oil(ISO12500-1)	50%	80+%	99.9+%	99.99+%	-	-	-
Residual oil content(ISO12500-1)	5mg/m³	0.6mg/m³	<0.01mg/m³	<0.001mg/m³	<0.004mg/m³	-	-

Air Dust Filter Downstream Filter for Air Compressor

Technical Specification
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 barg (100psi g).
For application in other working pressure, please refer to the correction factors.

Model	Pipe size	Flow rates			Dimension (mm)
Model	Pipe size	L/S	m3/min	scfm	W(Width)	D(Depth)	H(Height)	A	B	C(clearance for housing)
YF010	RC1/2"	16.7	1.0	35.3	96	79	261	29	198	118
YF020	RC3/4"	25.0	1.5	53.0	96	79	261	29	198	118
YF030	RC3/4"	30.0	1.8	63.6	96	79	295	29	233	153
YF040	RC1"	33.3	2.0	71.0	96	79	295	29	233	153
YF060	RC1"	60.0	3.6	127.0	138	111	403	37	296	208
YF070	RC1"	83.3	5.0	177.0	138	111	503	37	396	303
YF080	RC1-1/2"	125.0	7.5	265.0	138	111	503	37	396	303
YF090	RC2"	166.7	10.0	353.1	174	142	736	58	607	469
YF100	RC2-1/2"	216.7
