Air Filter with Fiber Glass Particulate Removal

Name: Air Filter with Fiber Glass Particulate Removal
Brand: Yuka
Price: 1 USD

Air Filter with Fiber Glass Particulate Removal Manufactures

Model No. : GHF017

Material : Aluminum Alloy

Housing Serve Lige : 15 Years

Element Serve Life : 4000~6000 Hours

Filtration Performance : From 5 μm To 0.01μm

Maxi. Operate Pressure : 3.0mpa

Operate Temperature : 1.5~80ºc

Connection : Rc1/2"

Flow Rate : 1.0 M³/Min

Resistance Corrosion : Inside And Outside

Configuration : Stainless Steel Sus304 Manual Ball Valve

Color : Light Blue

Parallel Design : Yes

Trademark : Yuka

Transport Package : Brown Inner Box & Cardboard

Origin : China

HS Code : 8421399090

Clapboard : Without Clapboard

Filter Number : 1

Medium Material : Fiberglass

Efficiency : F5

Filtration Grade : Medium Filter

Type : Cartridge Filter

Place of Origin : China

Brand Name : Yuka

Price : Negotiable

Packaging Details : Box Package

Delivery Time : 3-7working days

Payment Terms : L/C,T/T

MOQ : 10 pieces

Supply Ability : 300,000pcs/month

Contact Now

Product Description

GHF series Air Filter is recommended for the industries in laser, Nitrogen Generator industry.

Adsorption filter

Application of adsorption technology, the use of special adsorption materials (usually activated carbon) to remove the oil vapor, odor and certain harmful gases in the Compressed Air Filter

Feature & Benefit

1. Aluminum Alloy material, 15 years serve life for filter housing under working condition from temperature 1.5ºC~80ºC.
Maxi. Pressure is 3.0Mpa.

2. 6000~8000 hours serve life for Filter Element,filtering performance up to 99%
3. With Stainless steel SUS304 material manual ball valve.
4.Easy install saving space and cost for owner.

Technical Specification
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 barg (100psi g).
For the application in other working pressure, please refer to the correction factors.

Model	Pipe Size	Max Flow rates			Qty	Dimension(mm)
Model	Pipe Size	L/S	m³/min	cfm	Qty	W(width)	D(Diameter)	H(Height)	A	B
GHF017	RC1/2"	16.7	1.0	35.3	1	90	82	253	39	173
GHF025	RC3/4"	25.0	1.5	53.0	1	90	82	253	39	173
GHF030	RC1/2"	30.0	1.8	63.6	1	90	82	289	39	207
GHF035	RC3/4"	33.3	2.0	70.6	1	90	82	289	39	207
GHF058	RC3/4"	46.7	2.8	98.9	1	120	113	369	52	273
GHF068	RC1"	60.0	3.6	127.1	1	120	113	369	52	273
GHF080	RC1"	80.0	4.8	169.5	1	120	113	469	52	373
GHF145	RC1-1/2"	120.0	7.2	254.2	1	120	113	469	52	373

Pressure	Barg	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
Pressure	Psig	15	29	44	59	73	87	100	116	131	145	160	174	189	203	219	232
Correction factor		0.38	0.53	0.65	0.76	0.85	0.93	1.00	1.07	1.13	1.19	1.23	1.31	1.36	1.41	1.46	1.51

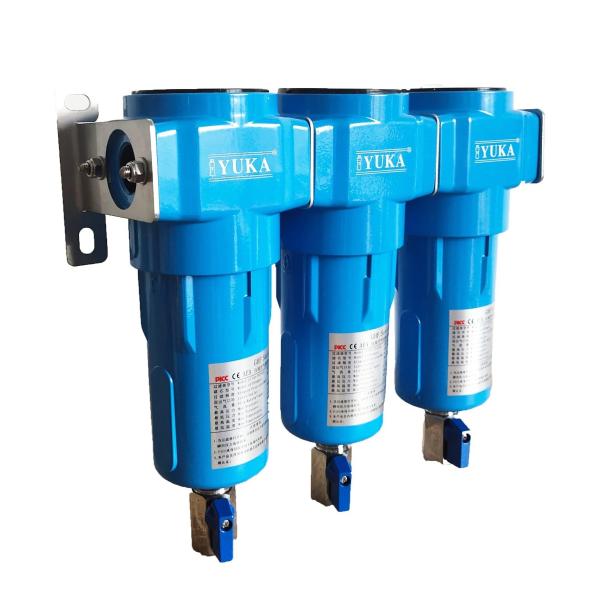

Air Filter with Fiber Glass Particulate Removal Images
